CAE 要以挑战及革新精神创造顾客价值。

Analysis of Formability

Example for Brake Booster
Analysis of Formability
Station 0/10. Draw 1/10. Draw 2/10. Draw 3/10. Draw 4/10. Draw
CAE Result 0/10. Draw 1/10. Draw 2/10. Draw 3/10. Draw 4/10. Draw
Min.
thickness		 0.696 0.693 0.688 0.676 0.653
Station 5/10. Draw 6/10. Draw 7/10. Draw 8/10. Draw 9/10. Draw
CAE Result 5/10. Draw 6/10. Draw 7/10. Draw 8/10. Draw 9/10. Draw
Min.
thickness		 0.614 0.614 0.534 0.508 0.491
온도
Animation for Cushion Panel
Animation for Cushion Panel의 3D 그래픽이미지
Animation for Cross Member
Animation for Cross Member 의 3D 그래픽이미지

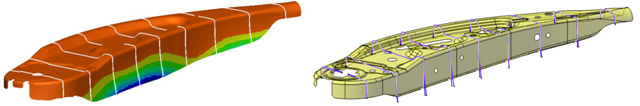

Analysis of SpringBack

Example for Side Frame
Example for Side Frame
Example for Cover Bottom of LED TV
Example for Cover Bottom of LED TV

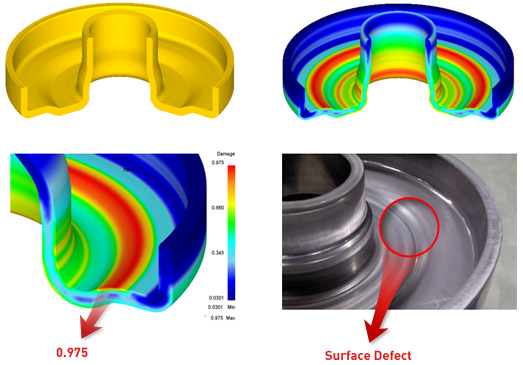

Analysis of Surface Defect

Analysis of Surface Defect
Analysis of Surface Defect

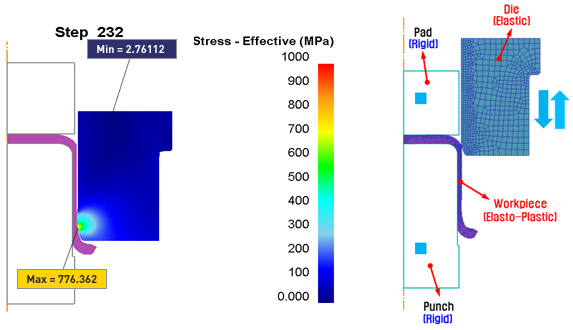

Analysis of Die Stress (Elasto-Plastic)

Analysis of Die Stress (Elasto-Plastic)
Analysis of Die Stress (Elasto-Plastic)
